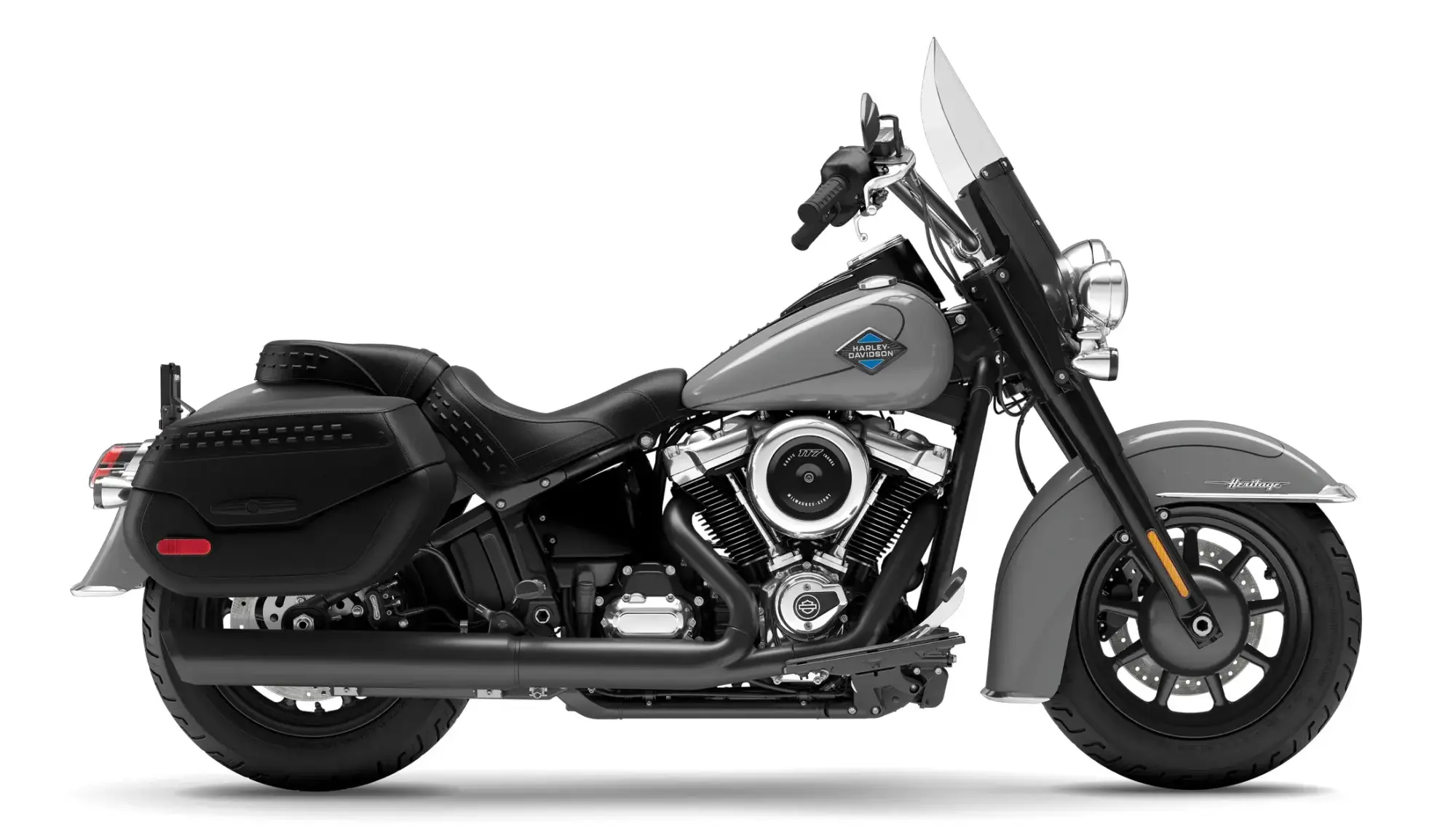

Classic cruiser vibes meet hot rod swagger—the Heritage Classic lets you switch things up fast, giving you the versatility to roll out for a weekend trip or strip it down for a laid-back ride around town.

Specifications

  • Dimensions
    add remove
    • Length:
      95.1 in
    • Seat height, unladen:
      26.8 in
    • Ground clearance:
      4.7 in
    • Rake (steering head):
      30
    • Trail:
      5.5 in
    • Wheelbase:
      64.2 in
    • Tires, front specifications:
      130/90B16,73H,BW
    • Tires, rear specifications:
      150/80B16,77H,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      697 lbs
    • Weight, in running order:
      728 lb
    • Luggage capacity – volume:
      1.6 cu ft (0.045 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Classic
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      120.2 ft-lb
    • Engine torque (RPM):
      2500
    • Horsepower:
      98 HP / 73 kW @ 4600 rpm
    • Lean angle, right (deg.):
      27.4
    • Lean angle, left (deg.):
      27.4
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      47 mpg (5 l/100km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Black, 9-Spoke Cast Aluminum
    • Wheels, rear type:
      Black, 9-Spoke Cast Aluminum
    • Brakes, type:
      Solid, uniform expansion rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
