From its heated handgrips down to its Twin-Cooled™ Milwaukee-Eight® 114 engine, the Ultra Limited motorcycle helps you find your balance in its marriage of machinery and technology. Need your bike to express your dark side? Check out the new bold black finish that engulfs the entire bike, from its wind-cutting, vented batwing fairing back to its roomy Tour-Pak® carrier.

Specifications

  • Dimensions
    add remove
    • Length:
      102.4 in
    • Seat height, unladen:
      29.1 in
    • Ground clearance:
      5.3 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      BW 130/70B18 63H
    • Tires, rear specifications:
      BW 180/55B18 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      880 lbs
    • Weight, in running order:
      917 lb
    • Luggage capacity – volume:
      4.7 cu ft (0.132 m3)
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight™ 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      122.4 ft-lb
    • Engine torque (RPM):
      2750
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      42.8 mpg (5.5 l/100km)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      146 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Wheels, optional style type:
      Gloss Black Slicer II
    • Wheels, front type:
      Slicer II cast aluminum with clear coat
    • Wheels, rear type:
      Slicer II cast aluminum with clear coat
    • Brakes, caliper type:
      32 mm, 4-piston fixed front and rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS (if equipped), f
    • Gauges:
      Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch standard
    • Headset specifications (if equipped):
      16-64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Text-to-Speech (TTS) languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Rider / passenger intercom:
      Standard
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

While every reasonable effort has been made to ensure the accuracy of the information contained on this site, absolute accuracy cannot be guaranteed. This site, and all information and materials appearing on it, are presented to the user “as is” without warranty of any kind, either express or implied. All vehicles are subject to prior sale. Offer expires on the date posted unless otherwise stated. Not all buyers will qualify. Please contact dealership for more details.

All advertised prices include all dealer fees, but exclude government fees and taxes, any finance charges, license and registration fees. Vehicles shown at different locations are not currently in our inventory (Not in Stock) but can be made available to you are our location within a reasonable date from the time of your request, not to exceed one week.

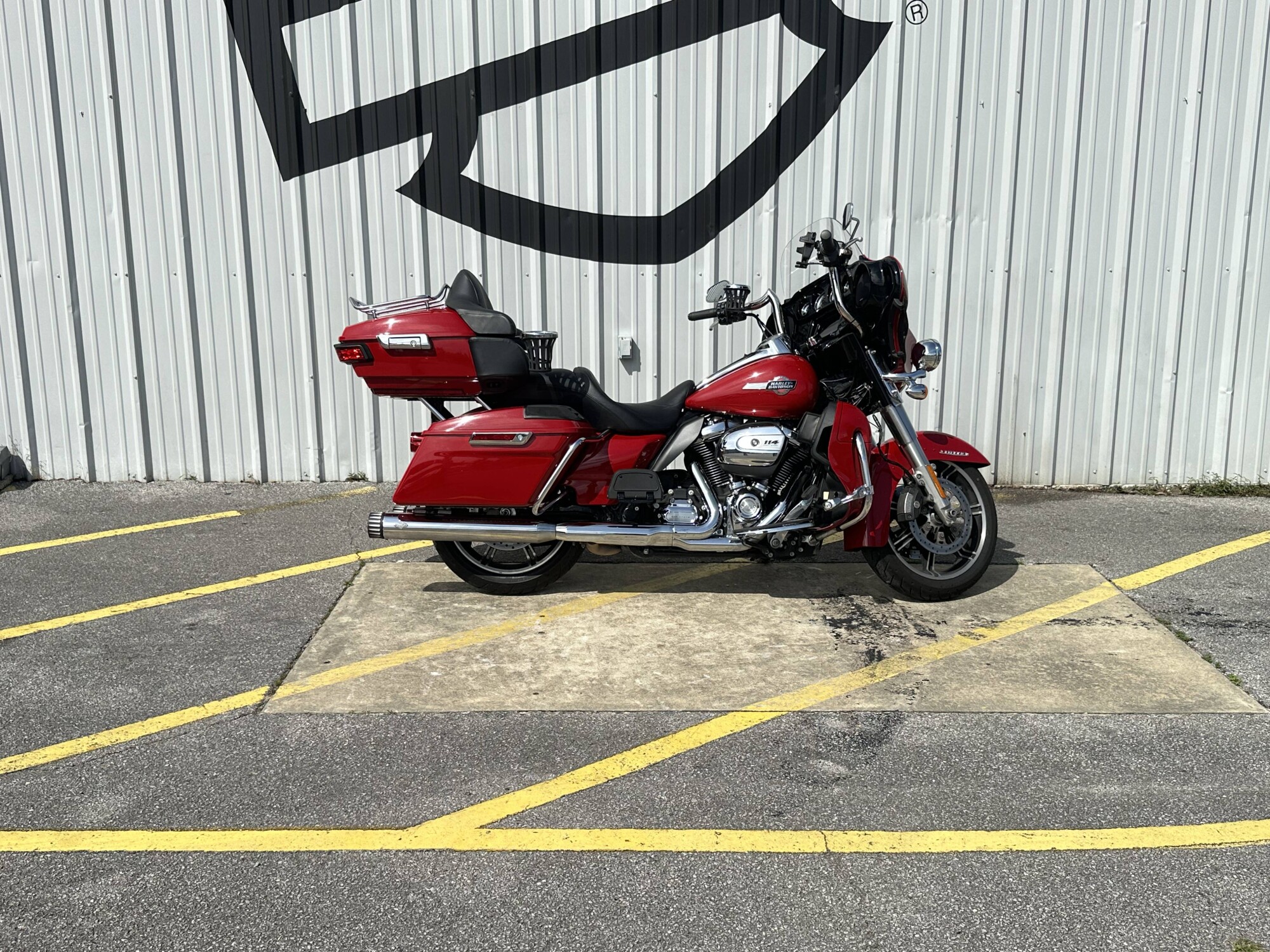

2023 Harley-Davidson® Ultra Limited Redline Red

TP678786
1HD1KEF19PB678786
Harley-Davidson®
Grand American Touring
Pre-owned
2023
17733 mi
Redline Red
Pensacola H-D

(850) 494 1224
